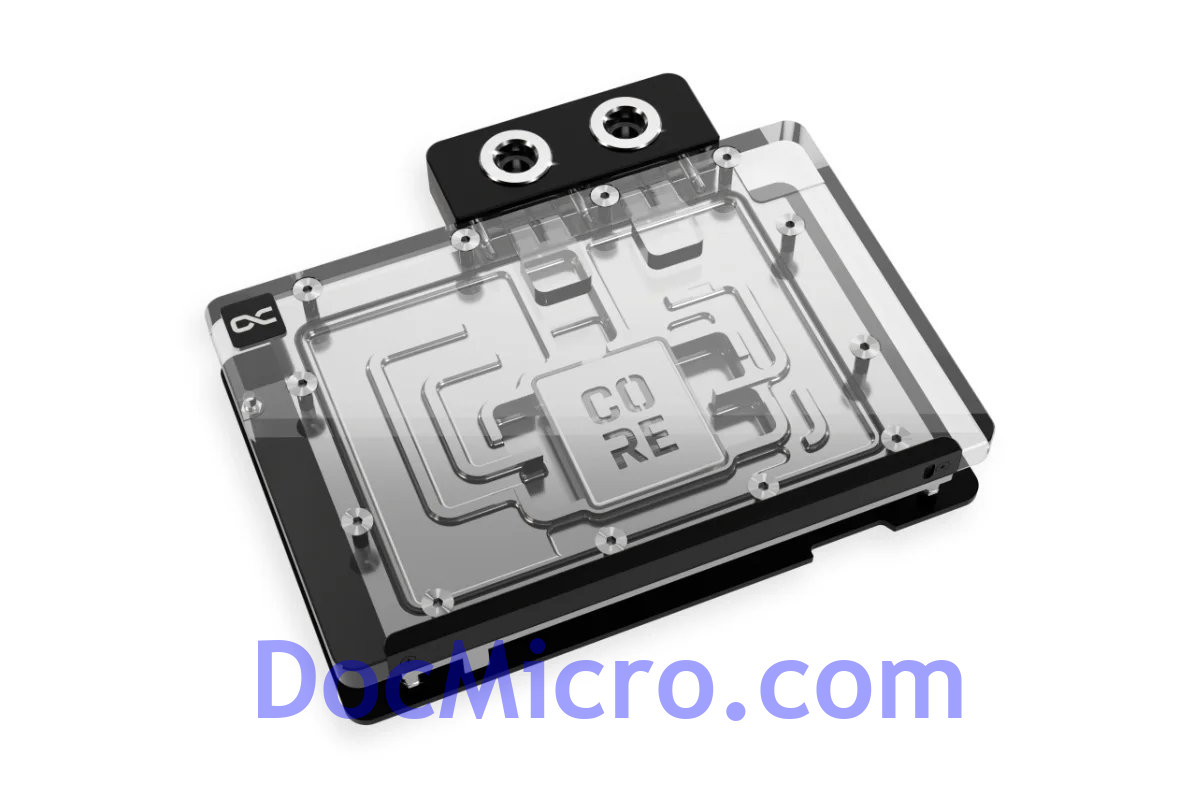

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.
At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler’s durability and provides a smoother, more radiant surface than traditional nickel plating.
The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.
The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility:
- MSI GeForce RTX™ 5070 Ti 16G GAMING TRIO OC PLUS (V531-058R)
- MSI GeForce RTX™ 5070 Ti 16G GAMING TRIO PLUS
- MSI GeForce RTX™ 5080 16G GAMING TRIO
- MSI GeForce RTX™ 5080 16G GAMING TRIO OC
- MSI GeForce RTX™ 5080 16G GAMING TRIO OC White
| Technical data cooler | |
| Dimensions total (L x W x H) | 180,50 x 151,07 x 34,20mm |
| Material cooler | chrome-plated copper |
| Material cooler top | Acrylic |
| Material terminal | Nylon |
| Material Connection thread | Brass |
| Max working temperature | 60°C |
| Pressure tested | 0,8 bar |
| Threads | 4 x G1/4" |
| Thickness cooler bottom | 3,25mm |
| Thickness cooling fins | 0,4mm |
| Distance cooling fins | 0,4mm |
| Illumination | digital aRGB LEDs |
| Power connector digital aRGB LEDs | 3-Pin JST |
| Power digital aRGB LEDs | 5V |
| Number of digital aRGB LEDs | 8 |
| Color | transparent |
| Technical data backplate | |
| Dimensions (L x W x H) | 180,50 x 122,50 x 6,00mm |
| Thickness backplate without spacers | 3mm |
| Material | Aluminium |
A premium aesthetic terminal cover for EK-Quantum Scalar terminals, EK-Quantum Scalar accessories like the Flow Indicator, and a replacement cover for stock GPU terminals as well.
The cover is machined out of a solid piece of aluminum which is then nickel plated to give it a premium look and feel. The cover can be attached quickly and easily by using the integrated pin screws located on the backside of the terminal cover.
The prime purpose of the product is to provide a terminal cover for users with EK-Quantum Vector RE RTX 3080/3090, EK-Quantum Vector Trinity RTX 3080/3090, EK-Quantum Vector Trinity RTX 3070, EK-Quantum Vector Strix RTX 3080/3090, and similar GPU water blocks which have a single piece terminal, which is then replaced with an EK-Quantum Scalar Flow Indicator. The EK-Quantum Vector Terminal Cover will provide an aesthetically cover for the screws, which blends in with the water block and flow indicator perfectly.
In the same way, the EK-Quantum Vector Terminal Cover can provide an aesthetical shroud for the screws for multi GPU setups using any of the EK-Scalar Dual or EK-Scalar Quad terminals.
Finally, any user who wishes to reduce the number of RGB LED sources in his PC, can use the EK-Quantum Vector Terminal Cover to replace the stock plastic cover on water blocks that have the two-piece terminal design (acetal terminal + plastic cover).
Technical Specification:
- Material: Aluminum
- Finish: Nickel Plating
Included:
- EK-Quantum Vector Terminal Cover
- Mounting screws
- 2mm Allen key
Compatibility:
- EK-Quantum Scalar Flow Indicator
- EK-Quantum Scalar Multi GPU terminals
- EK-Quantum Vector Water Blocks with two-piece terminal design
