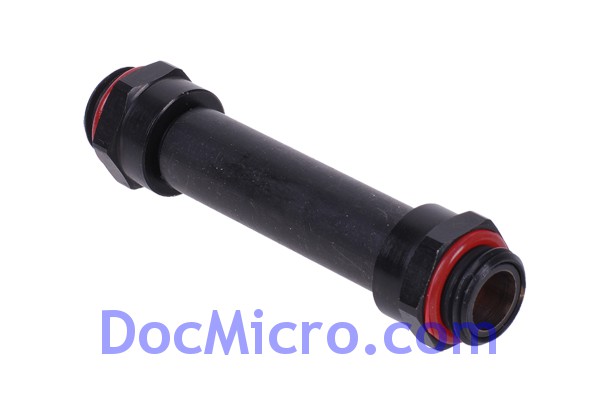

DocMicro Variable SLI/Crossfire connection nipple G1/4" - 3 Slot - matte black

The variable SLI/CF connection piece connects two VGA waterblocks which are installed in a Multi-GPU array. The special feature of this piece is its adjustability by approx. 12mm lengthwise. therefore this connector can be used on graphics card and waterblocks from multiple manufacturers. The connector piece can be used to parallely or serially connect the waterblocks. This is of course also possible with more than 2 waterblocks for e.g. Triple SLI or Quad Crossfire.

Technical specifications:
Thread size: G1/4"
Material: Brass (matte black)
Dimensions with threads: 69,1 - 83,4x17,8mm
Thread length: 5mm
Distance between the waterblocks: from 59,1 bis 73,4mm
Suitable for Mainboards with 3 slots distance between the graphics cards
Suitable for Crossfire graphics card water blocks e.g. from Alphacool, Aqua Computer, Watercool, Koolance, XSPC

Please note: The connector piece is only compatible with waterblocks which have connectors on both their top- and underside. It cannot be used on waterblocks with only one set of connectors

Extent of delivery:
1x Variable SLI/Crossfire connection nipple G1/4" - 3 Slot - matte black
