EK Water Blocks EK-Loop Hard Tube 12mm 0.8m Pre-Bent 90° - Acrylic (6pcs)

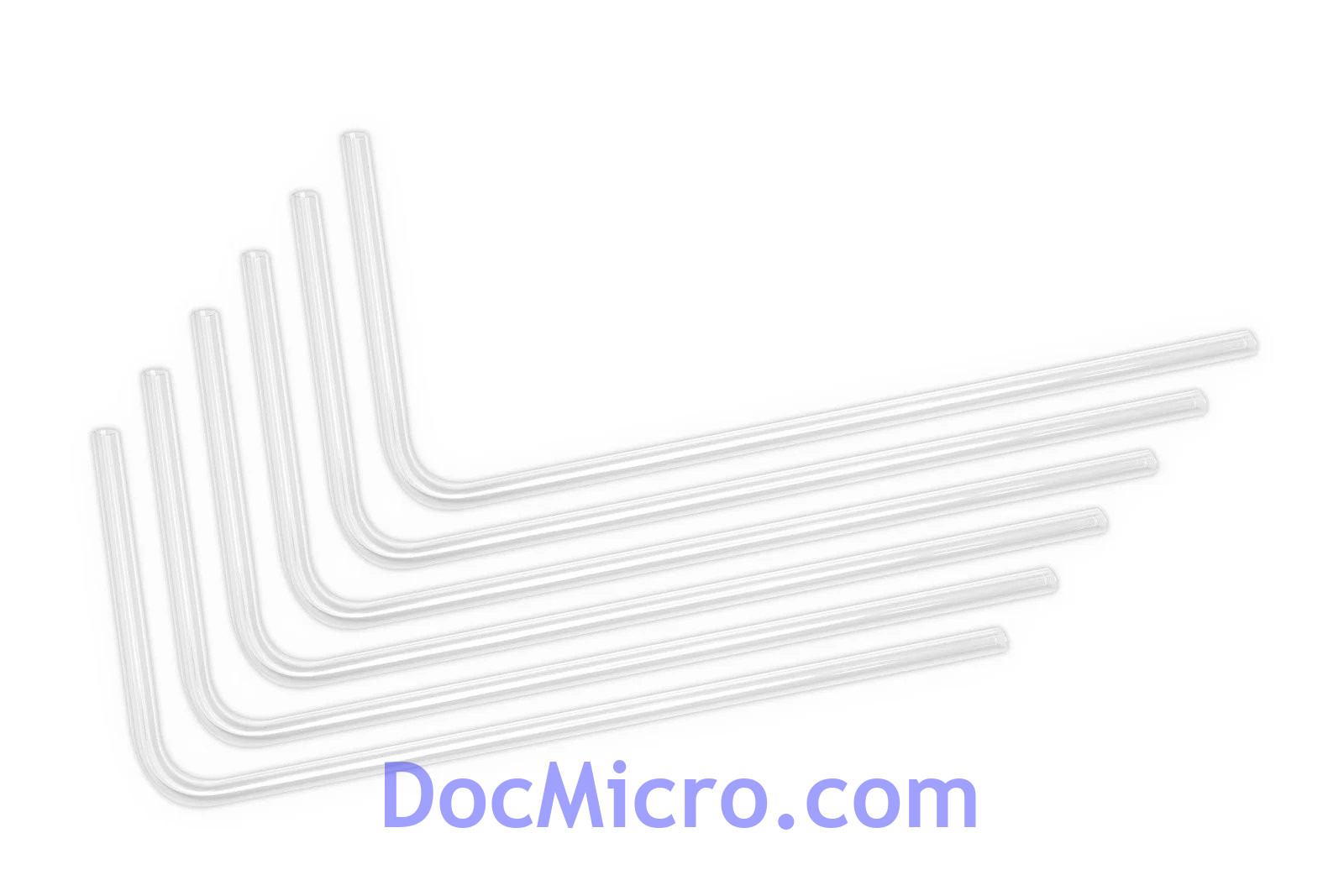

EK-Loop Hard Tube 12mm 0.8m Pre-Bent 90° - Acrylic (6pcs) is a 6-pack of 10/12mm (ID/OD) acrylic tubing bent to a 90-degree angle with a tubing length of 250mm and 550mm on either side of the bend. Intended to help liquid cooling beginners, but also bring a quality of life improvement for liquid cooling enthusiasts by shortening the time and effort needed to bend the tubing and build the systems.

It comes in a length of 0.8m (800mm) which can be easily cut and shortened to an adequate length for any tubing run. It is mandatory to chamfer the edges of a freshly cut tube in order to prevent gasket (O-ring) damage.

Technical data:
- Material: Extruded acrylic
- Inner diameter: 10 mm
- Outer diameter: 12 mm
- Total length: 800 mm
- Bend Angle: 90°
- Bend Radius: R20
- Length per axis: 550x250mm

The package contains 6 pieces of tubing only. Please purchase HDC or HDP fittings separately.

We recommend wetting the gasket (O-ring) using drops of water before installing the solid tube for easier installation.
