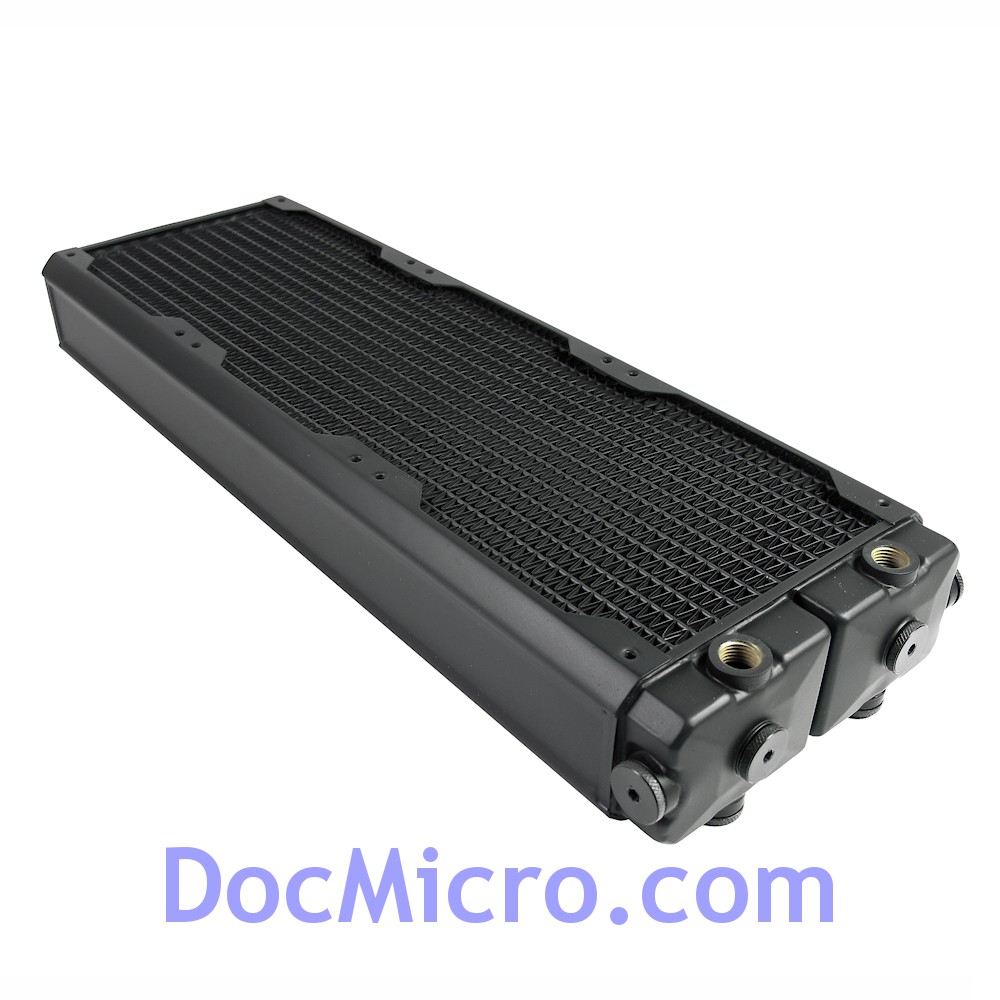

The Black Ice® SR2™ MP delivers the next level in ultra-stealth PC radiator performance.
Bringing to bear the new Black Ice® SR2™ compact Xtreme+ platform, the SR2™ 420 MP offers case-mod professionals a high flow triple 140mm fan form factor radiator with scalable ultra-stealth performance.
Technical details:
Built-in 8-PORT Inlet/Outlet manifold system
140 mm x 3 fan Xtreme+ form factor 3-row radiator
452mm x 153mm x 60mm (L x W x H)
9 FPI 45 Micron Copper Fins
Optimized for sub-800 rpm ultra-stealth fans
Supercruise™ optimizations for scalable performance with higher speed fans
50% more tubing area than the Black Ice® SR1-420
Increased internal coolant flow rates optimized for multi-stage cooling configurations
Standard G 1/4" inlet/outlet fittings
Standard M4 mounting threads
Compatible with Black Ice® GTX® 420 and Black Ice® SR1® 420 radiators
Custom Black Carbon™ high quality finish
Fully ROHS Compliant
100% Made from conflict-free materials
Industry standard Black Ice® quality
Lifetime warranty against manufacturing defects*
* Limited warranty information: www.hardwarelabs.com/nemesis/warranty
| Recommended | Capacity | Stealth | Supercruise | 8-Core CPU | GPU SLI/Crossfire | Fans |
| SR2-120 MP | 420W | ™œ | ™œ | ™œ | 1 | 1 X 120mm |
| SR2-240 MP | 950W | ™œ | ™œ | ™œ | TRIPLE | 2 X 120mm |
| SR2-360 MP | 1500W | ™œ | ™œ | ™œ | QUAD | 3 X 120mm |
| SR2-480 MP | 2000W | ™œ | ™œ | ™œ | QUAD | 4 X 120mm |
| SR2-140 MP | 500W | ™œ | ™œ | ™œ | 1 | 1 X 140mm |
| SR2-280 MP | 1100W | ™œ | ™œ | ™œ | TRIPLE | 2 X 140mm |
| SR2-420 MP | 1800W | ™œ | ™œ | ™œ | QUAD | 3 X 140mm |
| SR2-560 MP | 2350W | ™œ | ™œ | ™œ | QUAD | 4 X 140mm |
Product Reviews:
- Xtremerigs - ER GOLD Award
- ProClockers - Highly Recommended Award
Black Ice SR2 MP Mounting Diagram [ 40 kb ]
