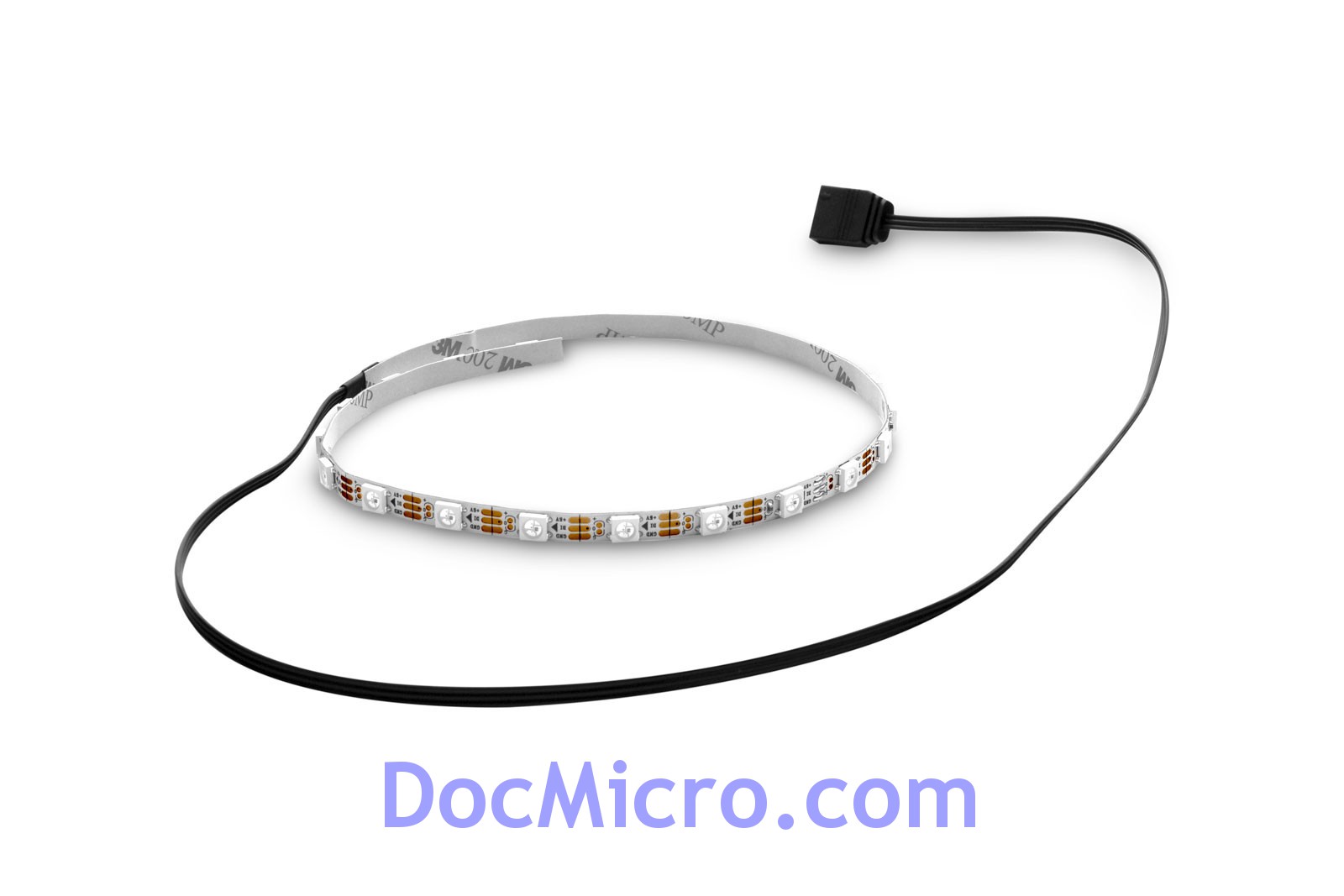

EK Water Blocks EK-Loop D-RGB LED Strip - 400mm

Replacement individually addressable RGB strip for upgrading existing EK products. The strip is 400mm long and can replace standard RGB strips in CPU blocks, monoblocks, reservoirs, and pump-combos. The strip is connected via a 3-pin connector to supported 5V headers that are present on most modern motherboards.

Technical data:

- Connection type: 3-pin (+5V, D, Blocked, Ground)
- Rated voltage: 5V DC
- Number of LEDs: 24 (60LED/m density)
- Strip length: 400mm
- Strip width: 5.8mm
- Cable length: 500mm

Compatibility:

EK-Quantum Kinetic FLT pump-reservoir combos

3831109819760 EK-Quantum Kinetic FLT 240 DDC PWM D-RGB - Plexi
3831109819777 EK-Quantum Kinetic FLT 360 DDC PWM D-RGB - Plexi
3831109819791 EK-Quantum Kinetic FLT 240 D5 PWM D-RGB - Plexi
3831109819807 EK-Quantum Kinetic FLT 360 D5 PWM D-RGB - Plexi
3831109822456 EK- Quantum Kinetic FLT 240 D5/DDC Body D-RGB - Plexi
3831109822463 EK- Quantum Kinetic FLT 360 D5/DDC Body D-RGB - Plexi
EK-Quantum Reflection Distribution plates

3831109823934 EK-Quantum Reflection Fractal ATX D5 PWM D-RGB - Plexi
3831109823941 EK-Quantum Reflection Evolv X D5 PWM D-RGB - Plexi
3831109826140 EK-Quantum Reflection PC-O11D D5 PWM D-RGB - Plexi

PLEASE NOTE:

Should not be used with 12V headers as that will damage the diodes, they should be powered exclusively by 5V headers
The specified width of the LED strip can deviate +-0.2mm due to manufacturing tolerances.
