| 12,50 € 11,25 € |

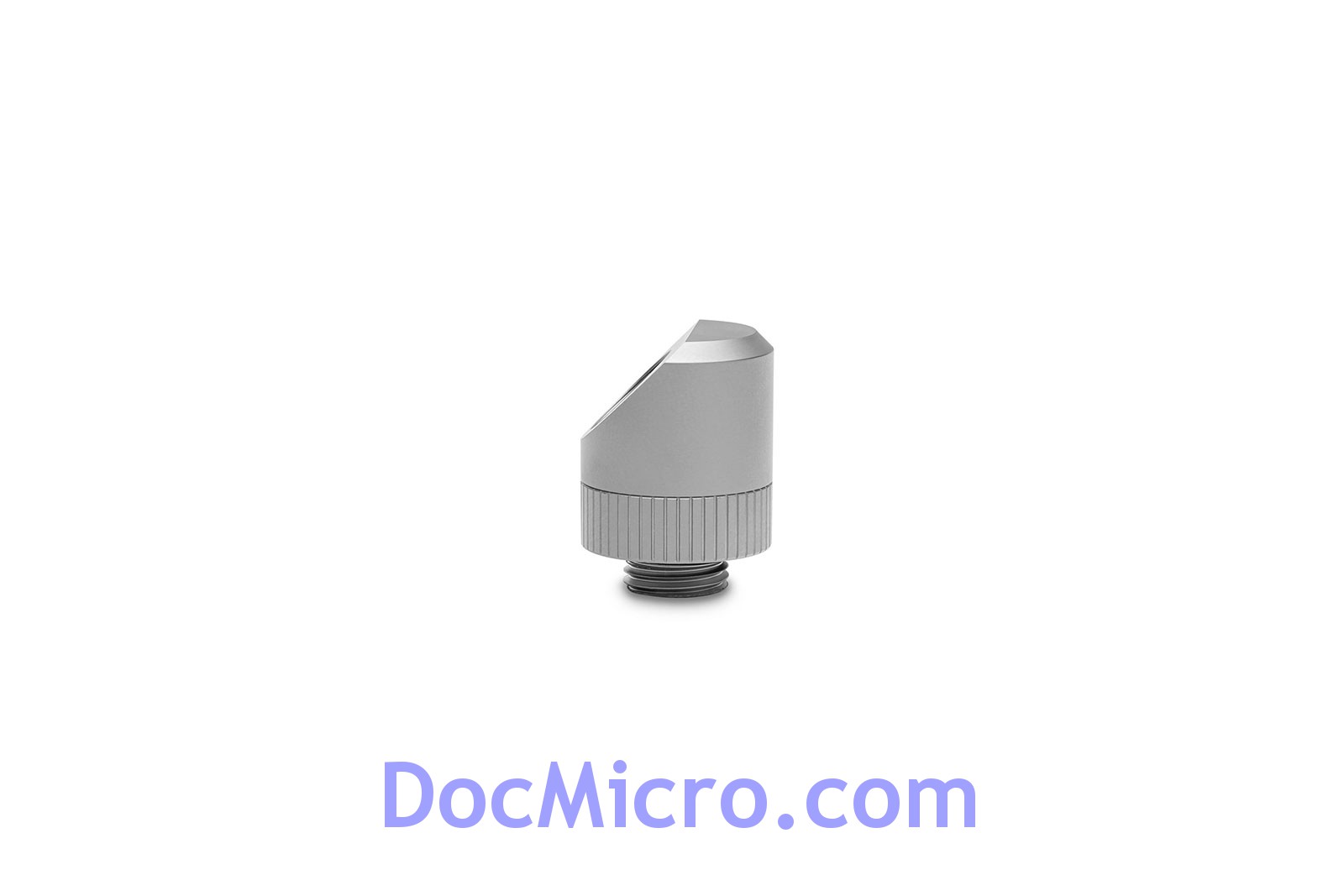

EK-Torque (Adapter Fitting) - Satin Titanium is a revolvable angled (45°) adapter fitting with G1/4" threads. In the form of a cut-off cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Nickel finish while the seal is made by quality rubber O-rings. It is an extremely secure and sturdy piece that will last for many future builds.
The adapter allows for connection of fitting with G1/4" threads to extend tubing possibilities in your water cooled system allowing for easier bends and better accessibility.
Technical specifications:
- Material: made of nickel plated brass
- Threads:
* G1/4" BSP; 4,5mm male thread length
* G1/4" BSP, 6mm female thread length
- The outer diameter: 23mm
- Installed height: 26mm
- Sealed with high-quality NBR o-ring.
ROHS compliant!
These Monsoon Premium Chain Gun fittings are intended for watercoolers looking for an aesthetic and efficient fitting.
Its design with a round ring with six colored barrels is a tribute to the power of fire.
The high-end finish of these fittings, its design and its complete packaging make it a must for your rigid pipes.
The pipe is fixed on the fitting by sticking it in the Lock Collars already installed on the fitting (See the video below for assembly):
http://geno.boxgods.com/Hardline_Premium_Fittings.mp4
Glue is available here .
Characteristics :
Machined from marine grade brass.
Antimicrobial nickel base.
Modular - fully interchangeable - between mounting styles and tube types.
Available in 6 colors.
1/4 "thread and high quality seals
Color seals provided.
Available for 13mm and 16mm outer diameter tubes.
Delivered with :
4 fittings
4 black gaskets
4 color gaskets (depends on the color of the fitting)
4 Lock Collars
8 seals for Lock Collars
1 assembly wrench
Monsoon fittings are compatible only with the Rigid 10 / 13mm MONSOON and PRIMOCHILL hose, they are not compatible with the Alphacool hose.
